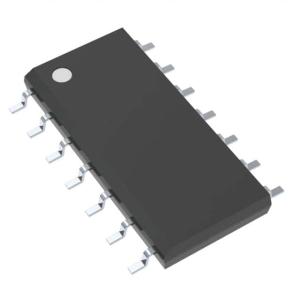

SN74S05DRG4

Category : Integrated Circuits (ICs) Logic Gates and Inverters

Product Status : Obsolete

Number of Inputs : 1

Mounting Type : Surface Mount

Package : Tape & Reel (TR)

Series : 74S

Input Logic Level - High : 2V

Logic Type : Inverter

Supplier Device Package : 14-SOIC

Input Logic Level - Low : 0.8V

Mfr : Texas Instruments

Operating Temperature : 0°C ~ 70°C

Voltage - Supply : 4.75V ~ 5.25V

Max Propagation Delay @ V, Max CL : 7.5ns @ 5V, 50pF

Current - Output High, Low : -, 20mA

Package / Case : 14-SOIC (0.154", 3.90mm Width)

Number of Circuits : 6

Base Product Number : 74S05

Features : Open Collector

Description : IC INVERTER OPEN 6CH 1-IN 14SOIC

Contact Now

Inverter IC 6 Channel Open Collector 14-SOIC
